Motorized Ball Valves - 3/4" Ball Valve with 24V DC and 2 Wire Setup

  • Payment
    OT , T/T , WK
  • MOQ
    1 Set
  • Country of sale
    Americas, Europe, Asia, Middle East, World Wide
  • PRICE
    • EXW

      USD 72.80

      (1 Set)

ITEM SPECIFICS

  • Brand
    VALCON
    Model ‎AD24-2TS/20A
  • origin
    Republic of Korea
  • Size(Capacity)
    ‎2.76 x 3.94 x 3.9 inches
  • Weight
    ‎2.1 pounds
  • Package Includes
    1 Actuator, 1 Ball Valve
  • Material
    Brass / Exterior Finish : Brass, Nickel
  • Color
    Brass(body-nickel plating, ball-chromium plating)
  • Style
    Inlet Connection Type : Female Iron Pipe / Outlet Connection Type : BSPT


PRODUCT DESCRIPTION


  • Application the ball valve types, Concise size, PT 1 Inch (Reduce Port)
  • Acquired CE, RoHs certification, Life waterproof grade: IP 68
  • Watchdog the Open / Closed, Manual Function & Long life cycle of more than 100,000 times
  • Open / Closed lamp Function & Signal output possible
  • High Quality Motorized made by VALCON in South Korea Ball valves

Technical Specification

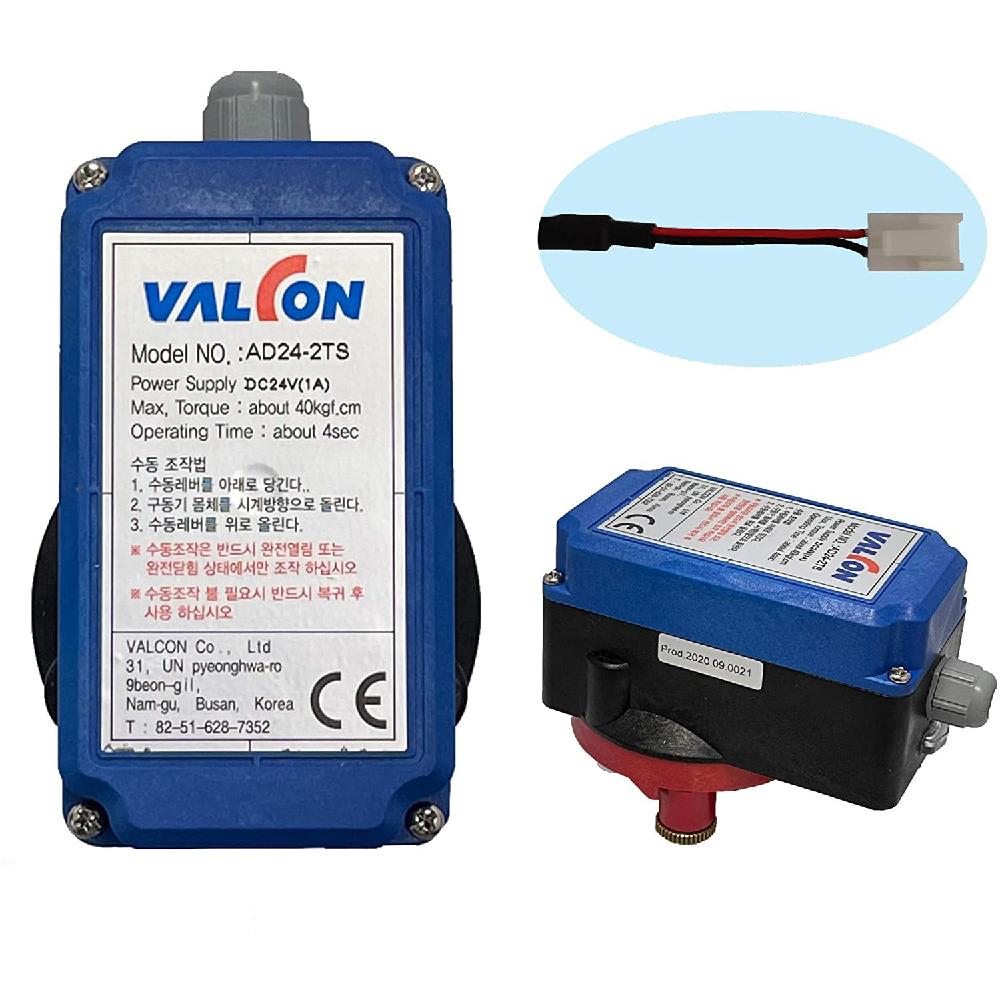

① Actuator
Control : DC forward / reverse control
Power : DC 24V (1A)
Consumption Power : Approx. 0.9W (in no-load operation)
Standby Power : Approx. 0.1W (in completed)
Max. Output torque : 40Kgf‧cm
Weight : Approx. 480g
Rotation Direction : Closes clock-wise / Opens Counter-clock-wise / (TOP VIEW)
Operating time : Approx. 4sec (90° operating basis)
Mechanical Life Span : Approx. 100,000 Cycles
Operation Environment : indoor
IP Rating : IP 68
Certification : CE, RoHS
Operation Temperature (Humidity) : room temperature (35 ~ 85% RH)

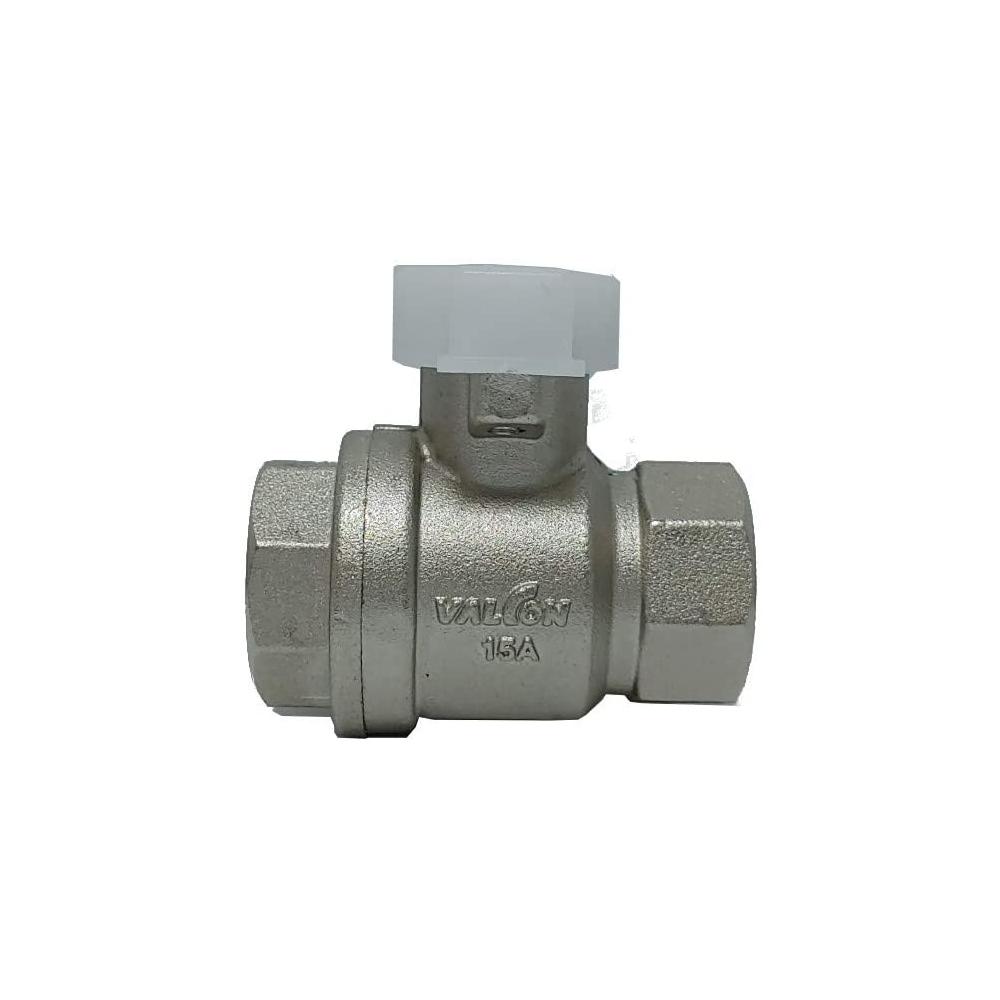

② Ball valve [Option]
Apply to B/V : 15A ~ 25A Ball valve
Max. Operating Temp : Brass [0℃ ~ 90℃ (32℉ ~ 194℉)], SUS [0℃ ~ 120℃ (32℉ ~ 248℉)]
Max. Operating Pressure : 10㎏f/㎝²(142PSI)
Application Fluid : Non-Corrosive Liquid & Gas
※ Be sure to use manual operation only when fully open or fully closed
※ Do not connect black wires to the red wire

Installation Specifications

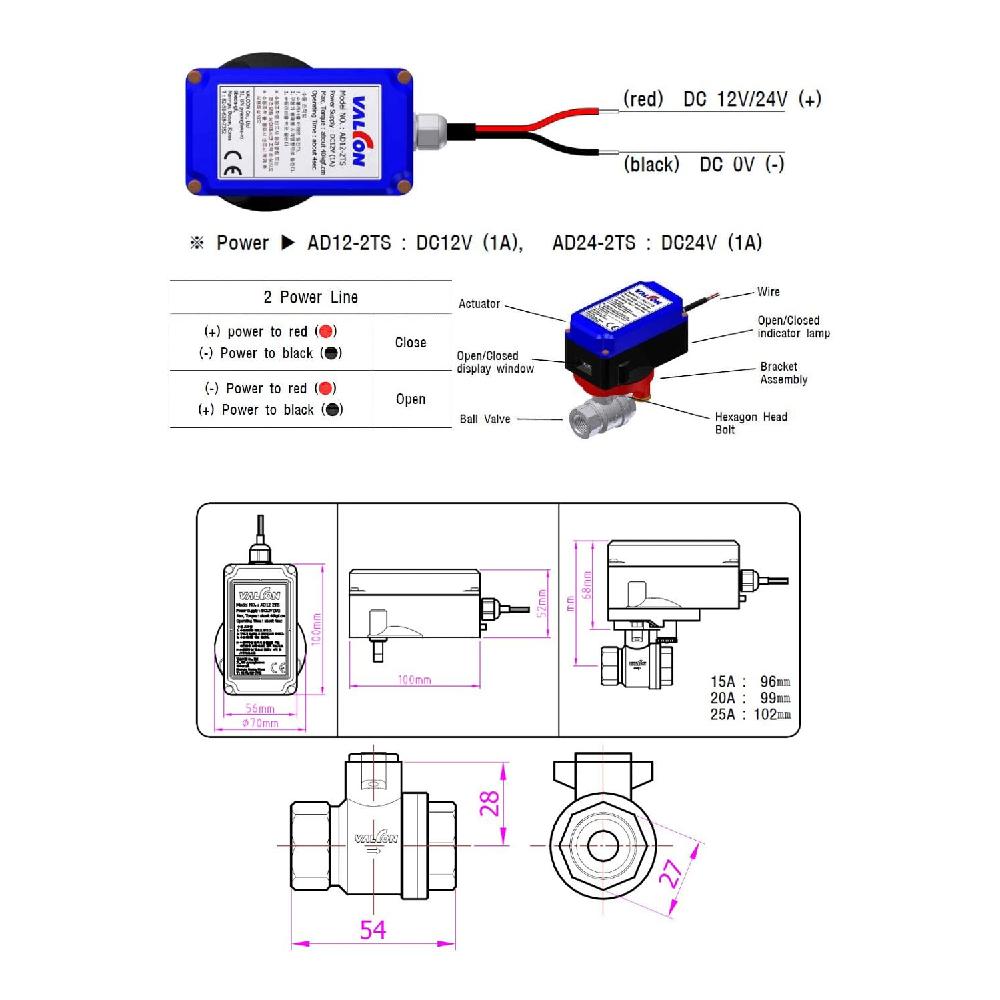

1. Compose system that can control by Close-operating Red(DC 24V + conductor), black (DC 0V - conductor) / Open-operating Red (DC 0V - conductor), black (DC 24V - conductor). It is a forward/reverse control method that operates by changing the direction of current

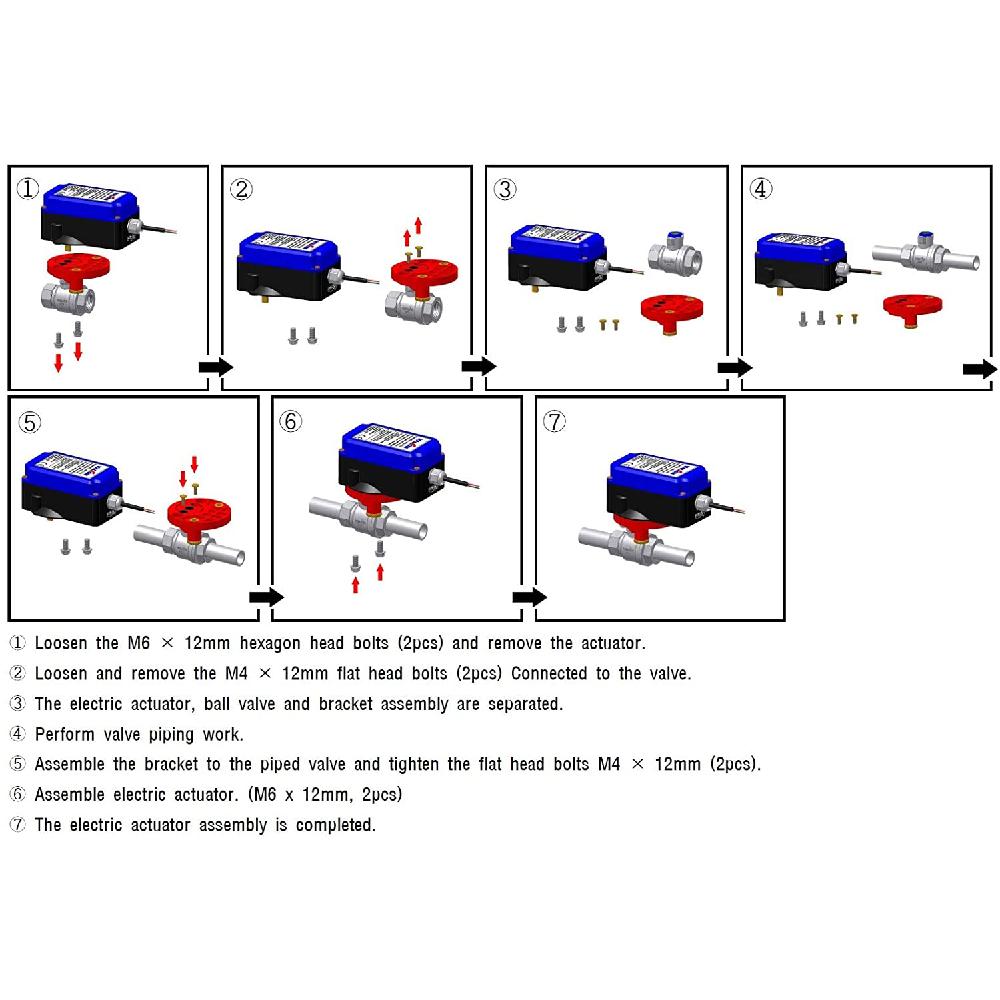

2. Install actuator vertically to valve that is established in piping line
3. Attach the power supply unit with a switch or disconnecting device for emergency power off
4. Connect an overcurrent cut-off device to the power supply for circuit protection

CAUTION
1. Be sure to read the product manual enclosed in the product before installation
2. Refer to the wiring diagram of the electric actuator for wiring carefully
