Motorized Actuators DC 12V (Excluding Ball Valve) - AT12-2T (2-Wire (4 N.M))

  • Payment
    OT , T/T , WK
  • MOQ
    1 Set
  • Country of sale
    Americas, Europe, Asia, Middle East, World Wide
  • PRICE
    • EXW

      USD 25.00

      (1 Set)

ITEM SPECIFICS

  • Brand
    VALCON
    Model AT12-50
  • origin
    Republic of Korea
  • Size(Capacity)

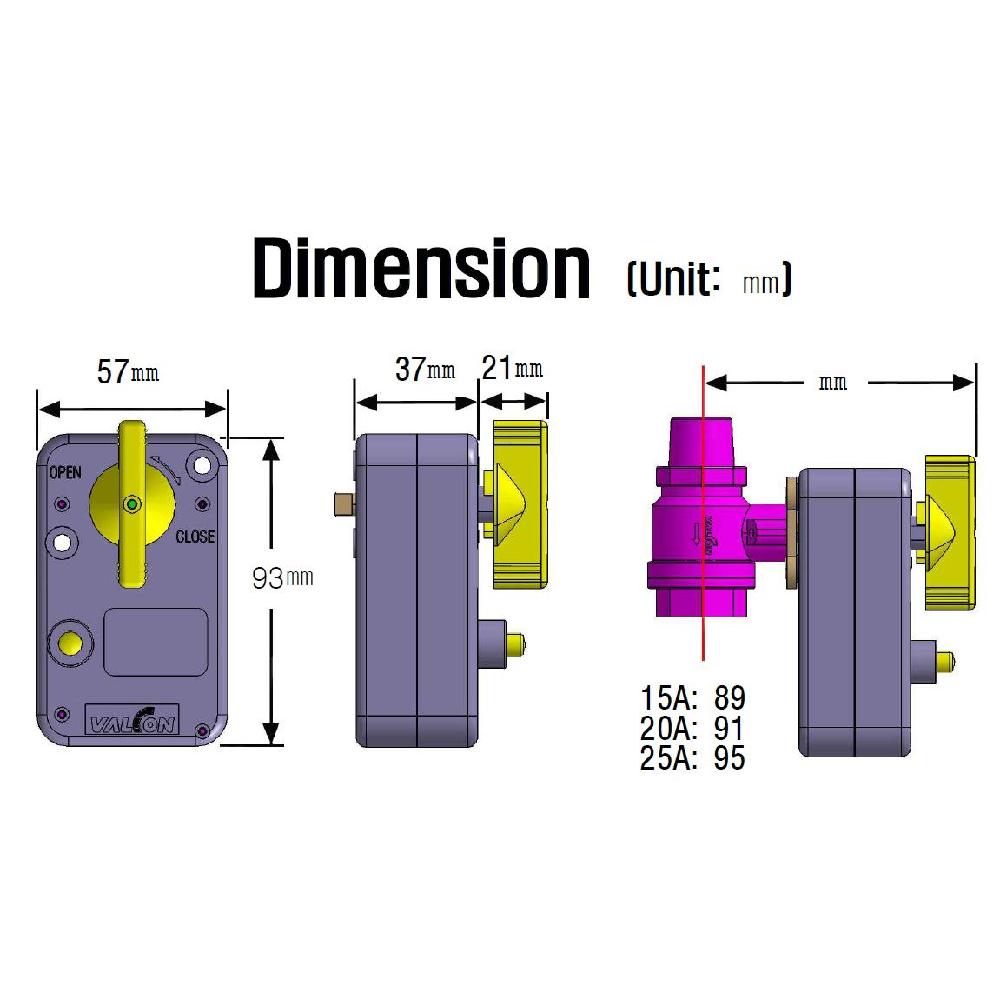

    4.73 x 2.37 x 2.96 inches
  • Weight
    8.44 Ounces (Approx. 250g)
  • Package Includes

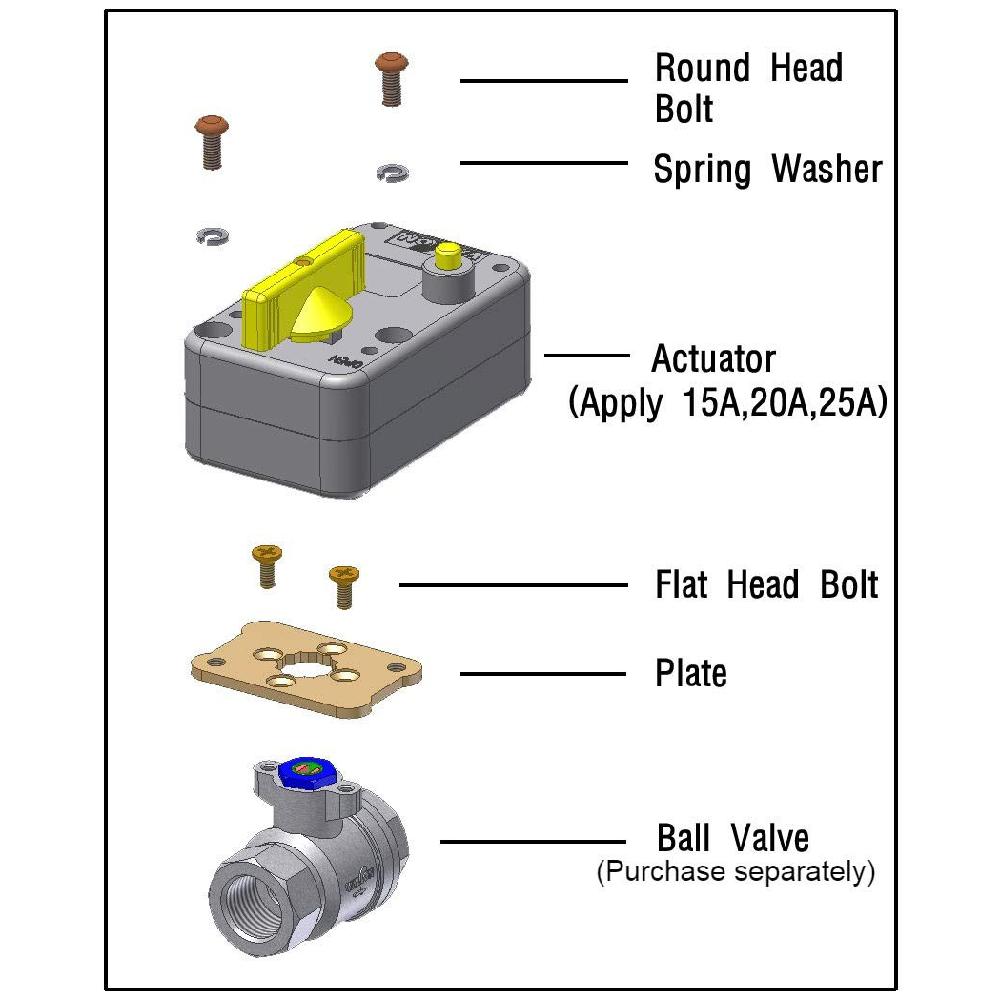

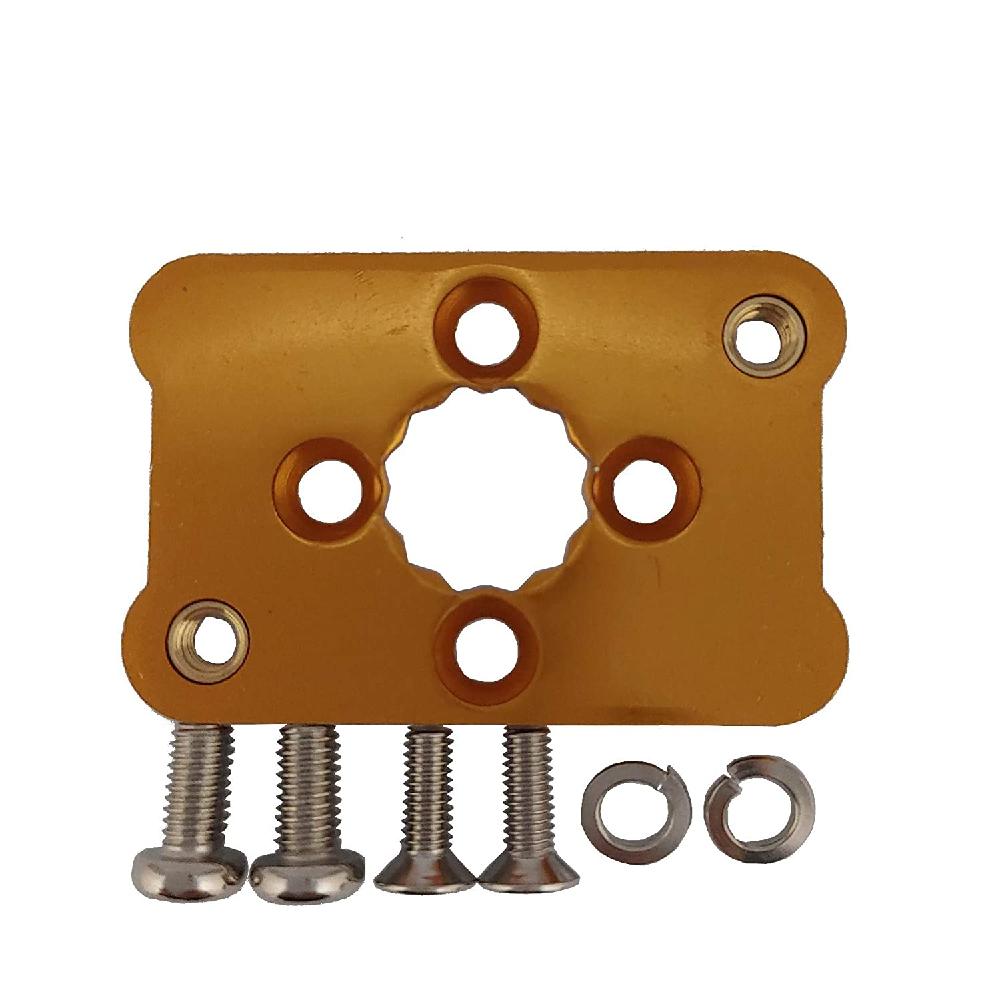

    1 Actuator, 2 Round Head Bolts & Spring Washer, 2 Flat Head Bolts, Plate
  • Material
    Brass
  • Style
    2-Wire (4 N.M)


PRODUCT DESCRIPTION


  • VALCON is an electric ball valve used instead of a solenoid valve that leaks due to sludge.
  • VALCON is an actuator ball valve that can observe the operating state when water is shut off.
  • VALCON is a valve that can flow control and direction control with a stronger force than a pneumatic actuator.
  • VALCON can be opened and closed types of with a water valve and an air valve.
  • VALCON is applied and used in various places such as washing machine, shower, drain, sprinkler, fuel cell, ice maker, control device, heating, irrigation, etc.

Technical Specification

Model: AT12-50
Control: Configuration of Valcon Control System or Connection control signal [Red DC(+), Black(-), White(connection signal wire)]
Power: DC 12V / 850mA
Consumption Power: Approx. 0.6W(in operation)
Max. Output torque: 40Kgf‧cm
Rotation Direction: Opens Counter-clock-wise / Closes clock-wise (TOP VIEW)
Operating time: Approx. 4sec.
Mechanical Life Span: Approx. 100,000 Cycles
Weight: Approx. 250g
Certification: CE, RoHS
Ambient Environment: Indoor with no condensation
Ambient Humidity: 35 ~ 85% RH
Ambient Temperature: 15℃ ∼ 50℃
Application ball valve: 15A ~ 25A all products (Brass, SUS)
※Applied switch : Micro-switch types, toggle switch types, relay type, micom-control type, sensor, timer
Temperature sensor and variety type or controller

Installation Specification
1. Please install the actuator the verticality way on the installed valve on piping

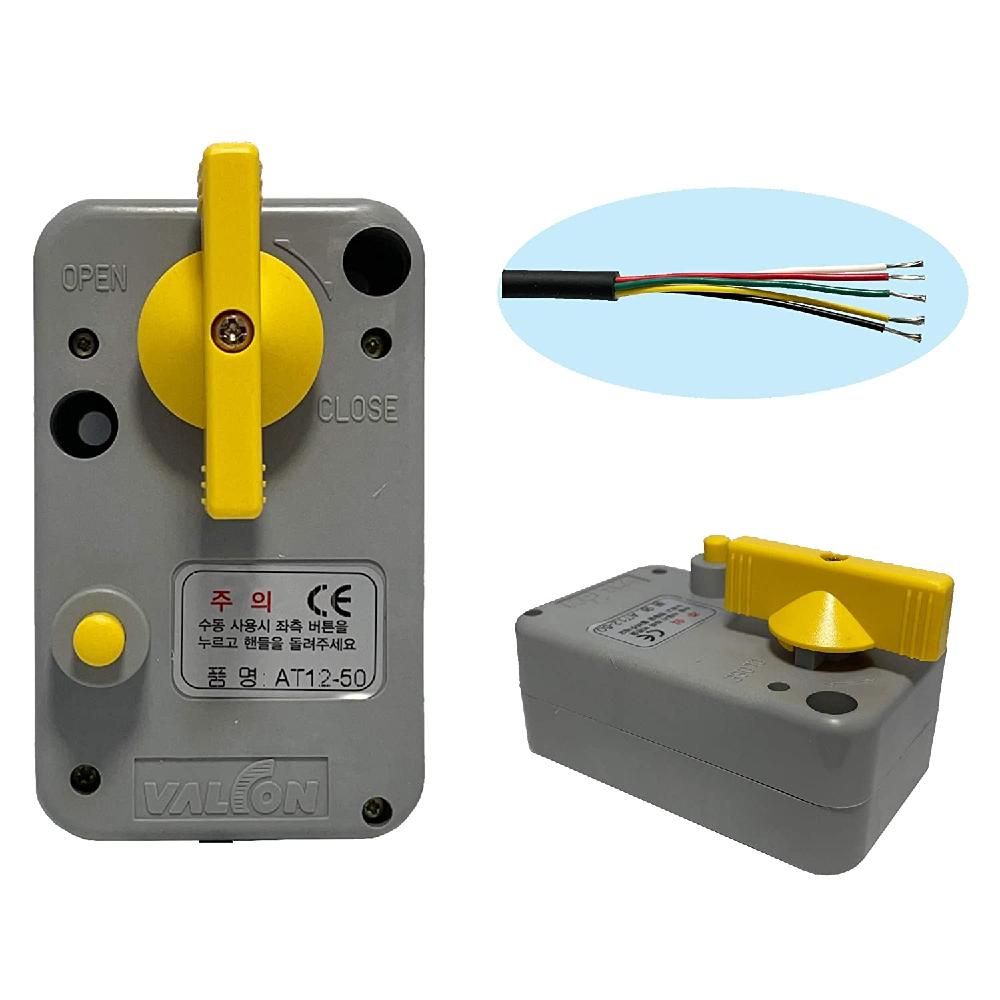

2. Please make sure for connecting by Red wire-DC(+), Black wire-DC(-), White wire--contact signal
3. Use yellow line(open signal output) and green line(closed signal output) to configure a system that can check the completion of operation
4. Press the left yellow circle button and turn the handle on the actuator

CAUTION
1.Please install the actuator the verticality on the valve installed in the piping line
2.Please refer to wire-connection-draw of actuator
3.Do not turn the handle of actuator before completed Open or Close
4.The actuator is life waterproof. Do not be inundation
5.Please care of interference when the handle of actuator move
