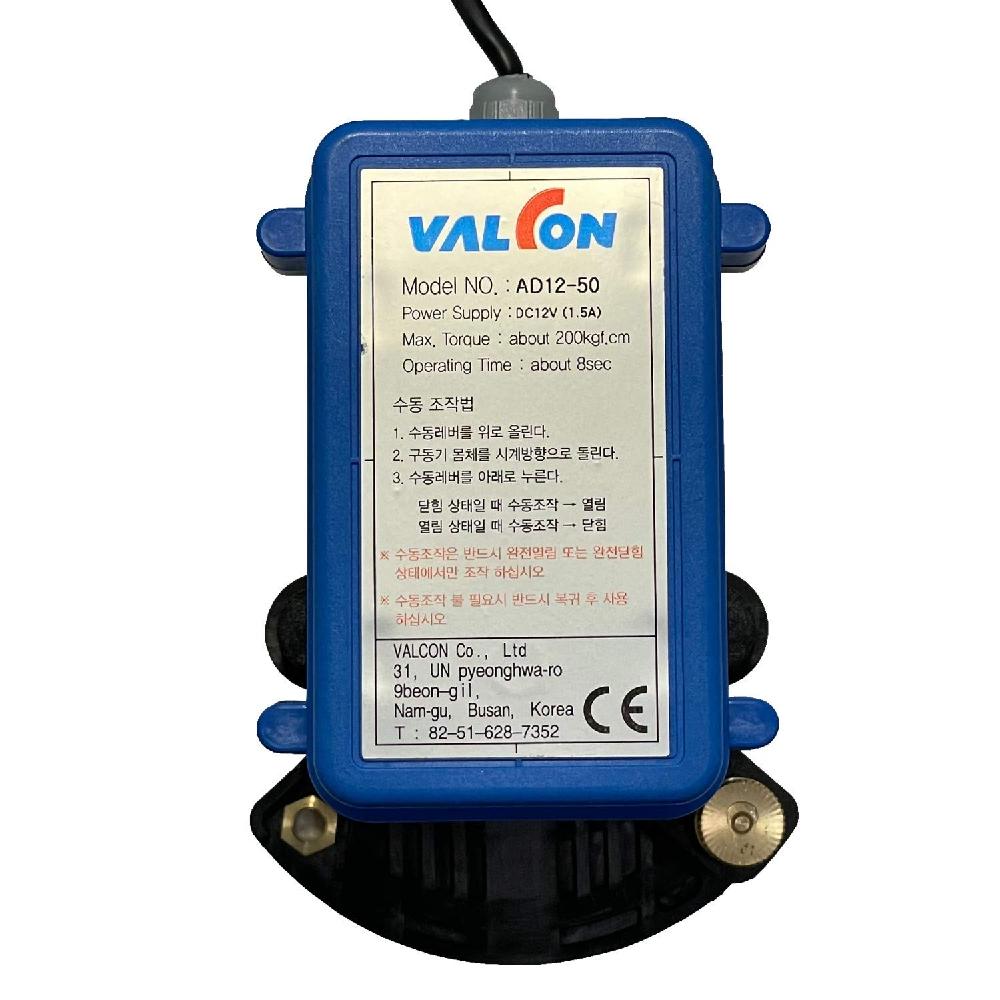

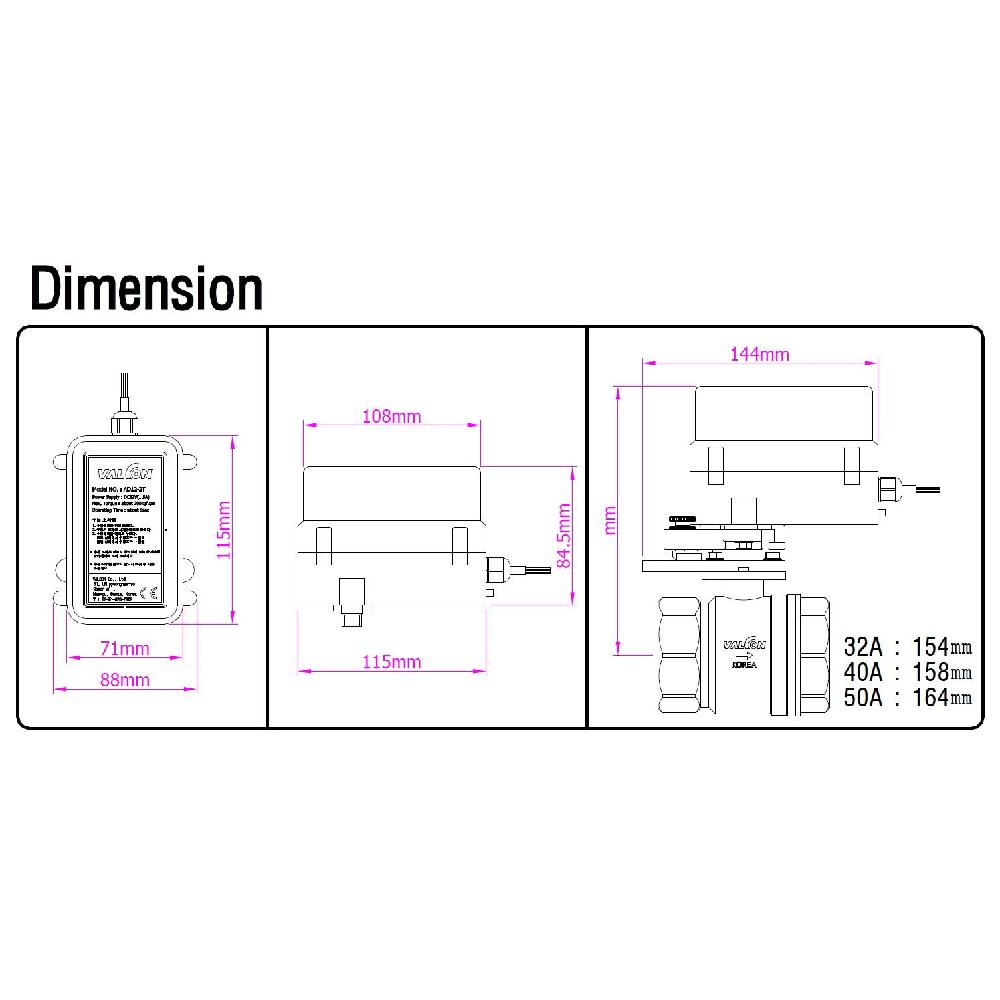

Actuator
Model: AD12-50
Control :DC Contact point control
Power : DC12V (1.5A)
Consumption Power : Approx. 3W (in no-load operation)
Standby Power : Approx. 0.16W (in completed)
Max. Output torque : 200Kgf‧cm
Weight : Approx. 845g
Rotation Direction : Closes clock-wise / Opens Counter-clock-wise / (TOP VIEW)
Operating time : Approx. 8sec (90° operating basis)
Mechanical Life Span : Approx. 100,000 Cycles
Operation Environment : indoor
IP Rating : IP 67
Certification : CE, RoHS
Operation Temperature (Humidity) : room temperature (35 ~ 85% RH)

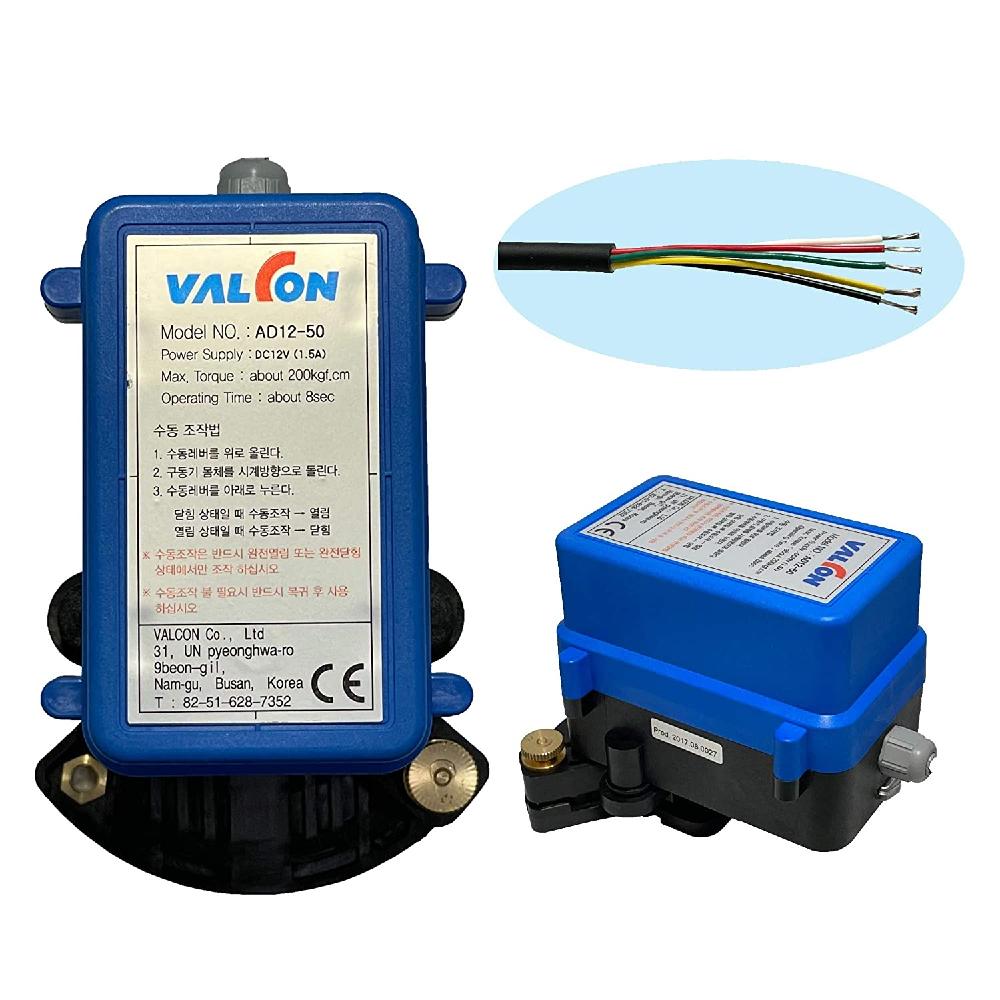

※ The yellow line and green line are used for the operation completion confirmation device, and there is no problem in opening / closing the electric actuator without using it
(Insulate the unused wires with insulation tape or a suitable material with the same function to prevent short-circuiting)
Installation Specifications
1. Compose system that can control by Close-operating Red(DC 12V + conductor), black (DC 0V - conductor) / Open-operating Red (DC 0V - conductor), black (DC 12V - conductor). It is a forward/reverse control method that operates by changing the direction of current

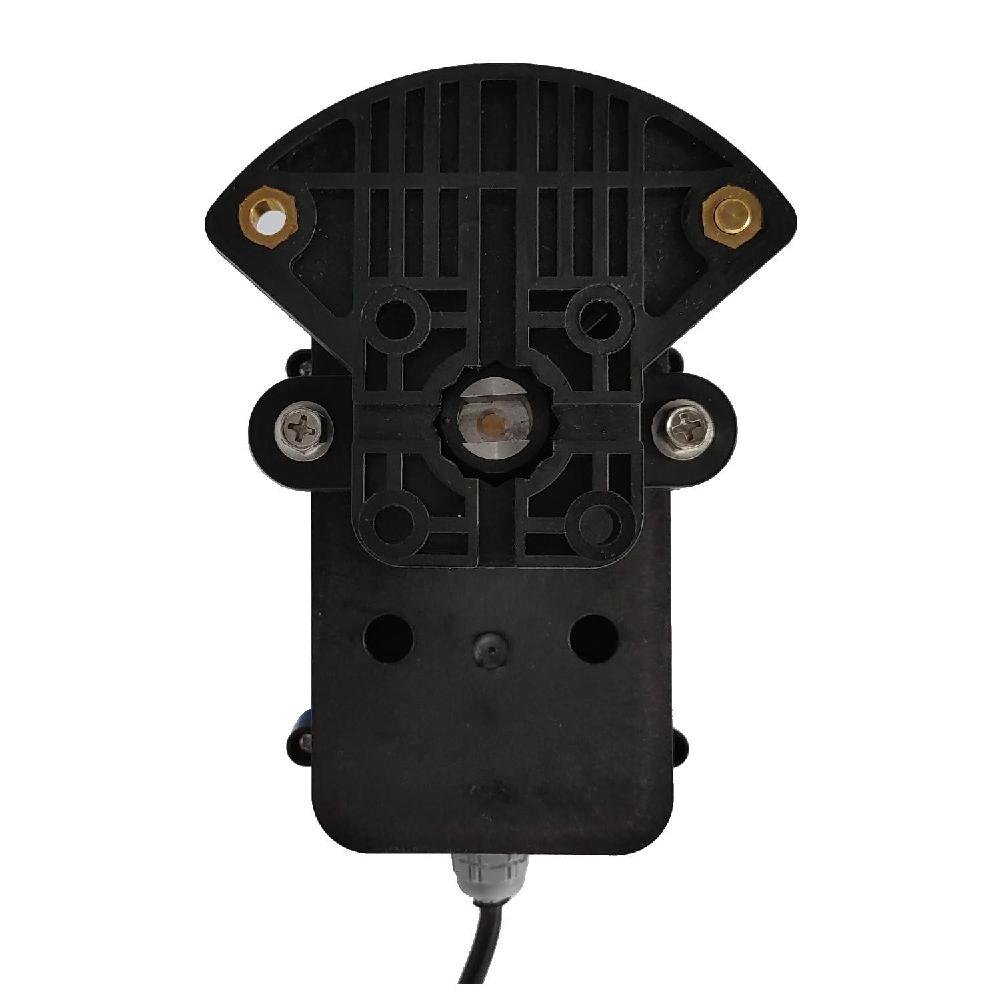

2. Install actuator vertically to valve that is established in piping line
3. Attach the power supply unit with a switch or disconnecting device for emergency power off
4. Connect an overcurrent cut-off device to the power supply for circuit protection
CAUTION
1. Be sure to read the product manual enclosed in the product before installation
2. Refer to the wiring diagram of the electric actuator for wiring carefully
